Calculating Branch Current
2. The Magic Formula
Okay, time for the good stuff! The secret weapon for calculating branch current is none other than Ohm's Law. Remember that one? It's the cornerstone of electrical engineering and it states that Voltage (V) = Current (I) Resistance (R). In simpler terms, its how voltage, current, and resistance relate to one another.
To find the branch current (I), we just rearrange the formula: I = V / R. See? It's not as scary as it looks! In other words, branch current is simply the voltage across the branch divided by the resistance of that branch. Given that we know the voltage is the same across all branches in a parallel circuit, the only factor influencing a branch current is its resistance.
Let's imagine we have a circuit with a 12V power source and two branches. One branch has a 6-ohm resistor, and the other has a 12-ohm resistor. To find the current in the first branch, we'd do: I = 12V / 6 ohms = 2 amps. For the second branch: I = 12V / 12 ohms = 1 amp. Easy peasy, right?
Don't forget your units! Current is measured in Amperes (amps), Voltage in Volts (V), and Resistance in Ohms (). Keeping your units straight is crucial to preventing errors and ensuring your calculations are correct. Next up, we will look at some practical tips and tricks to calculating branch currents.
Tips & Tricks for Calculating Branch Currents
3. Simplifying Complex Circuits

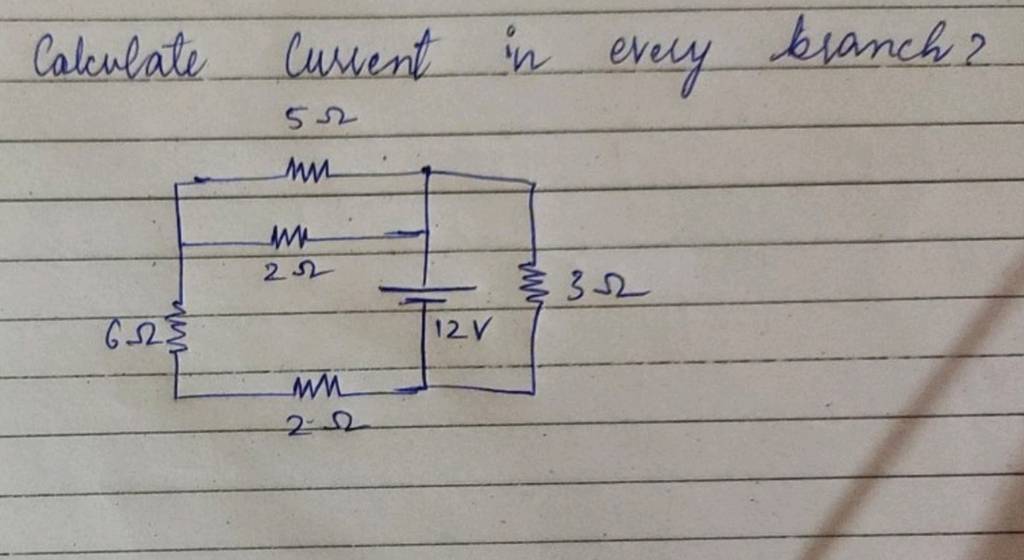

Sometimes, circuit diagrams look a little more daunting. What if you have multiple resistors in a single branch? Don't fret! The first step is to simplify the branch by calculating the equivalent resistance . If the resistors are in series within a single branch, you simply add their resistances together. If they're in parallel within the branch , you use the reciprocal formula to find the equivalent resistance (1/Rtotal = 1/R1 + 1/R2 + ...). Once you have the equivalent resistance for the entire branch, you can use Ohm's Law as usual.
Another helpful tip is to always double-check your work. Electrical calculations can be tricky, and it's easy to make a small mistake. Review your calculations to verify that the numbers align with the expected current flow and the specific requirements of your circuit design. It can be useful to redraw your circuit with all the values known (including branch currents) just to check that everything makes sense.
And here's a pro tip: Sometimes it's helpful to calculate the total current flowing from the voltage source first. This can be done by calculating the total* equivalent resistance of the entire parallel circuit. Then, you can verify that the sum of the branch currents equals the total current from the source. This ensures that your calculations for each branch are consistent with the overall circuit behavior.
Finally, remember that practice makes perfect. The more you work with circuits and practice calculating branch currents, the easier it will become. Don't be afraid to experiment and try different scenarios. Grab a breadboard and some components and start building! There's no better way to learn than by doing.
